Elastomer mounts Transport

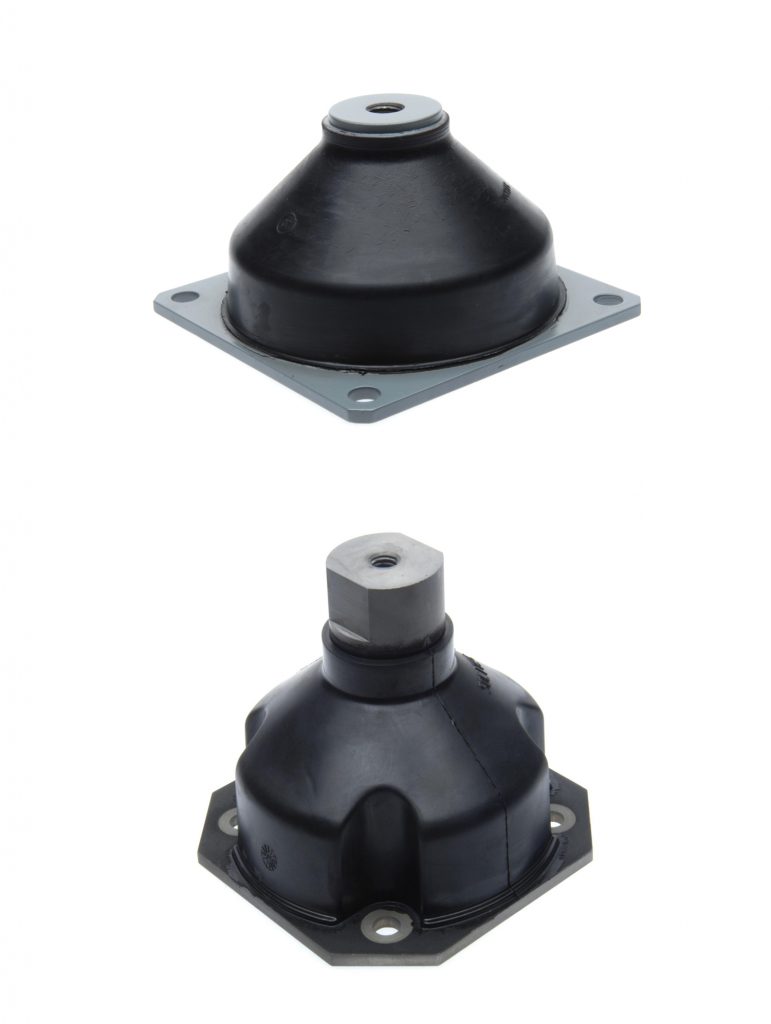

Elastomer mounts for transport are devised to isolate shocks and vibrations from 4 Hz. Socitec offers four types of transport elastomer isolators :

  • BFB and BFC transport elastomer shock mounts are low frequency polychloroprene mounts that isolate shocks and vibrations from 8 Hz.
  • BFB transport elastomer mounts comprise 1 and 2 fixture points and are suitable for static loading of 15 to 120 kg
  • BFC transport elastomer mounts comprise 1 and 4 fixture points and are suitable for static loading per mount of 30 to 1,200 kg

The BFCO transport elastomer mount is an EPDM isolator.
Isolates shocks and vibrations from 4 Hz,
Comprises 1 and 4 fixture points,
Static loading per mount 30 to 300 kg.
The PC31 transport elastomer mount is a silicon isolator.
Isolates shocks and vibrations from 10 Hz,
Comprises 1 fixture point,
Static loading per mount 11 to 20 kg.

Qualities

  • Multi-directional shock/vibration isolation
  • Displacement under shock up to 38 mm (depending on model)
  • Transmissibility: Q <6 or Q <10
  • Resistance at 3g static under max. load
  • Resonance frequency up to 14 Hz
  • Resonance excitation range up to 1.25 mm
  • Usage temperature: -30°C to +100°C
  • Highly adaptable: special models on request (materials, size and interfaces, etc.)

Characteristics

Our engineers calculate the model and define the solution that best corresponds to your vibration constraint

Contact our consultants and determine the right model for your requirements.

Download the technical specifications of the different models
