Elastomer mounts Marine

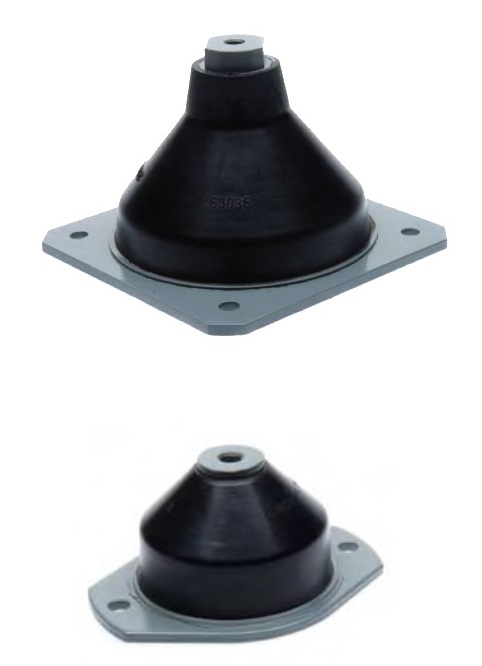

Marine elastomer mounts are designed for the Navy to provide multi-directional isolation of shocks and vibrations for naval activities. Socitec produces five specific ranges :

  • Low-frequency polychloroprene mounts (BF45, BFJ, BFL and BFM) and the BFN45 low-frequency natural rubber mount.
  • The BF45 marine elastomer mount isolates shocks and vibrations from 5 Hz.
    It features 1 to 4 fixture points for static loading per mount of 30 to 1,080 Kg
  • The BFJ marine elastomer mount isolates shocks and vibrations from 5 Hz.
    It features 1 to 2 fixture points for static loading per mount of 10 to 130 Kg
  • The BFL marine elastomer mount isolates shocks and vibrations from 5 Hz.
    It features 1 to 2 fixture points for static loading per mount of 5 to 10 Kg
  • The BFM marine elastomer mount isolates shocks and vibrations from 5 Hz.
    It features 1 to 4 fixture points for static loading per mount of 5 to 10 Kg
  • The BFN45 marine elastomer mount isolates shocks and vibrations from 5 Hz.
    It features 1 to 4 fixture points for static loading per mount of 30 to 1,080 Kg

Qualitites

  • Multi-directional shock/vibration isolation
  • Displacement under shock up to 70 mm
  • Transmissibility: Q <10
  • Usage temperature: -30°C to +70°C
  • Highly adaptable: special models on request (materials, size and interfaces, etc.)

Characteristics

Our engineers calculate the model and define the solution that best corresponds to your specifications

Contact our consultants and determine the right model for your requirements.

Download the technical specifications of the different models
