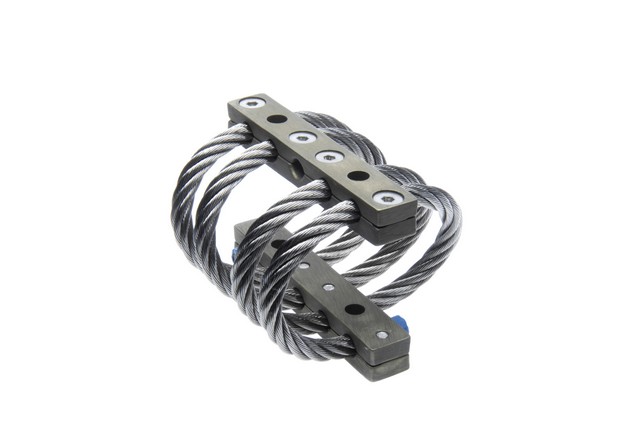

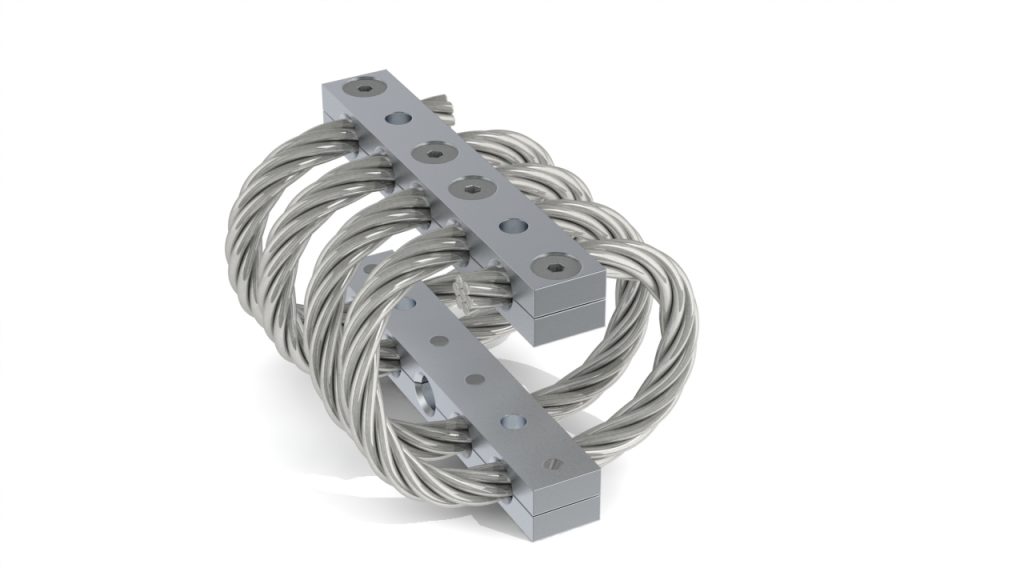

Wire rope isolators Half Helical

Half Helical wire rope mounts are multi-directional isolators with excellent corrosion resistance and high adaptability. Standard models in the series feature four cable loops.

Qualities

  • All-metal isolators
  • Combined shock / vibration isolation from 5 Hz
  • Interfaces: 2 fixture points between the equipment to protect and the structure
  • Static loading per mount of 0.1 to 2,000 kg
  • Exceptional endurance and reliability
  • No ageing
  • Excellent corrosion resistance
  • Usage temperature: -180°C to +300°C (-290F to 570F)
  • Highly adaptable: special models on request (materials, number and shape of loops, etc.)

Caractéristiques

Our engineers calculate the model and define the solution that best corresponds to your vibration problem, depending on the compression and traction on the level and at 45 degrees, the shear strain and roll.

Contact our consultants and determine the right model for your requirements.

Download the technical specifications of the different models
